RC LiPo Battery Pack 3S1P 11.1V

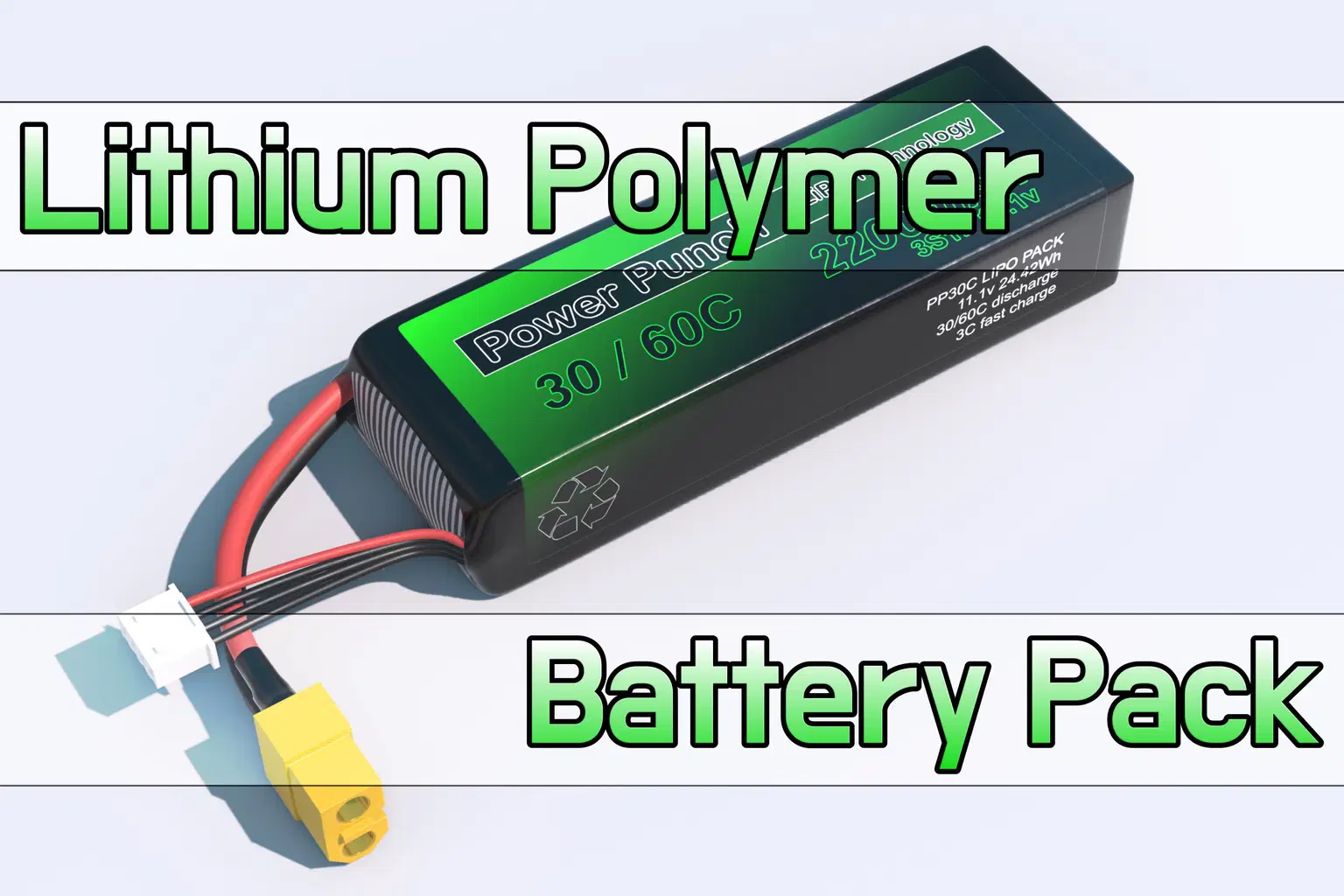

A 3D model of a lithium-polymer (LiPo) battery pack commonly used in remote-controlled planes and first-person view (FPV) drones is provided. The model represents a 3S1P 2200 mAh 11.1 V configuration, featuring a main XT connector and a balance connector of XH type, aligning with typical hobby-grade battery geometry and proportions.

The model is production-ready, incorporating PBR-compatible materials and textures suitable for close-up renders, simulators, and product visualizations. It can be utilized with a Subdivision Surface (Sub-D) modifier to achieve smoother results while maintaining a clean and straightforward base mesh.

Key Features

Editable Decal: The primary label/branding decal is a separate 2048×2048 texture, enabling easy replacement or customization using any image editor (e.g., GIMP, Affinity Photo, Krita).

• PBR-Ready Materials: Four distinct material groups are included:

• Decal: 2048×2048

• Pack & Plastic Wrap (including Wires and Shrink Tubing): 2048×2048

• XT Connector: 512×512

• XH Connector: 512×512

Organized Workflow: The model is accompanied by a well-organized .blend file containing clearly named objects and materials, facilitating Blender (Cycles/Eevee) and effortless export.

Included Files

• Blender (.blend): Fully UV-mapped, PBR-ready battery pack, XT connector, and XH connector.

• Render setup with both EEVEE ans Cycles render engine in blender, as seen in the preview renders.

• FBX Exports: Separate FBX files for the complete battery pack, XH connector, and XT connector.

Textures:

• Both JPG and PNG versions of all base, roughness, and optionally normal/metalness maps (as configured).

• PDF Guide: A PDF document elucidating the material setup in Blender, decal replacement instructions, and general guidelines.

Dimensions:

Pack: 109x37x23,3mm

XT Connector: 8,9x21,5x15,8mm

XH Connector: 7,88x11,1x5,27mm

The XT60‑style and JST XH‑style connectors are original 3D models, created from scratch in Blender. They are inspired by common hobby‑grade connector designs, but they are not exact copies or official replicas of any manufacturer’s parts.
